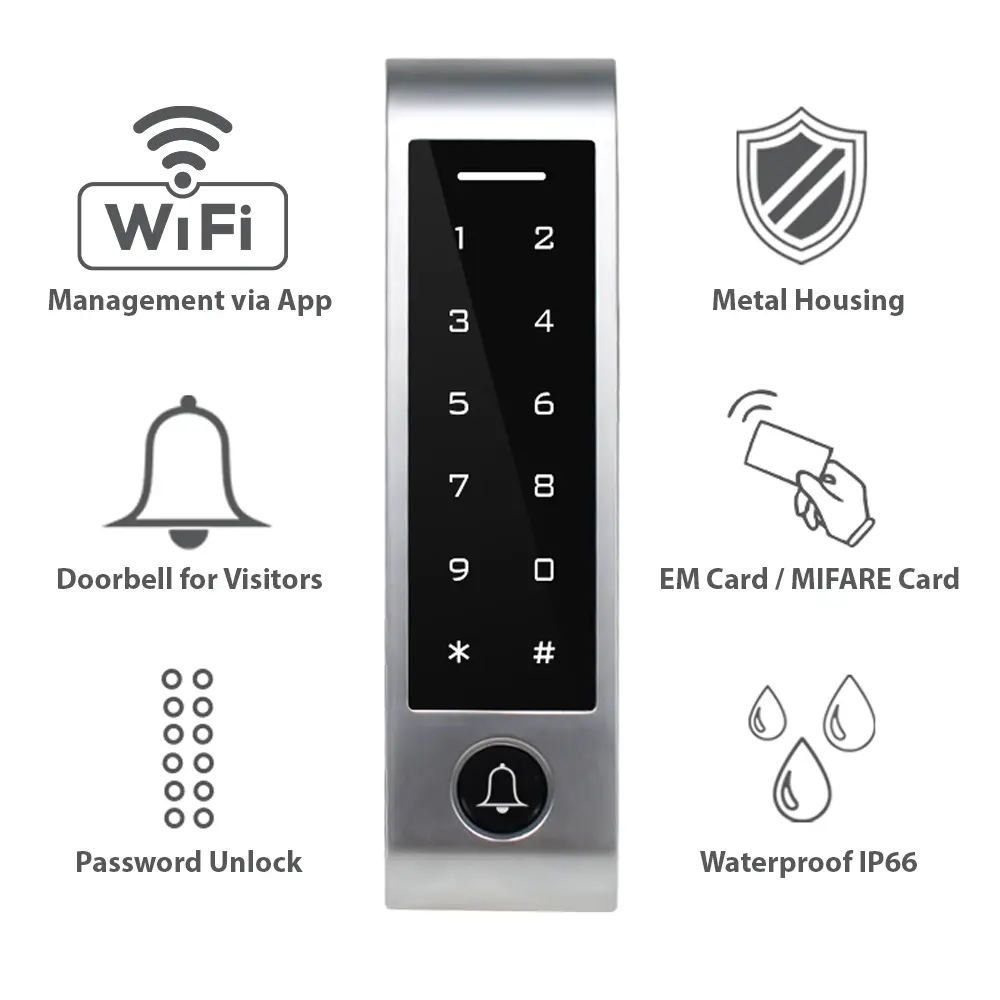

Stand-alone multi-function single door access controller / RFID Wiegand reader offering user friendly operation, stable performance and low-power consumption.
The device supports 1000 users and features multi access modes:
card only, PIN only, card + PIN and multiple cards / PINs.
Extra features include block enrollment, interlock, Wiegand input/output.
Features
- WiFi Interface
- Tough, anti-vandal waterproof (IP66) housing
- 1,000 users (988 common + 10 visitors + 2 panic users)
- Card block enrolment
- PIN length: 4-6 digits
- Reads 125KHz EM cards & tags
- Pulse mode, Latch mode
- 2 devices can be interlocked for 2 doors
- Integrated Relay, Buzzer & Alarm output
- Wiegand 26-44 bit input & output
- Low temperature resistance (-40°C)
- Built-in LDR for anti-tamper
Applications
- Access Control
- Time & Attendance
- ID Authentication
Ordering information...
CPH4-WIFI - Wifi Stand-Alone RFID Access Controller with PIN Entry
