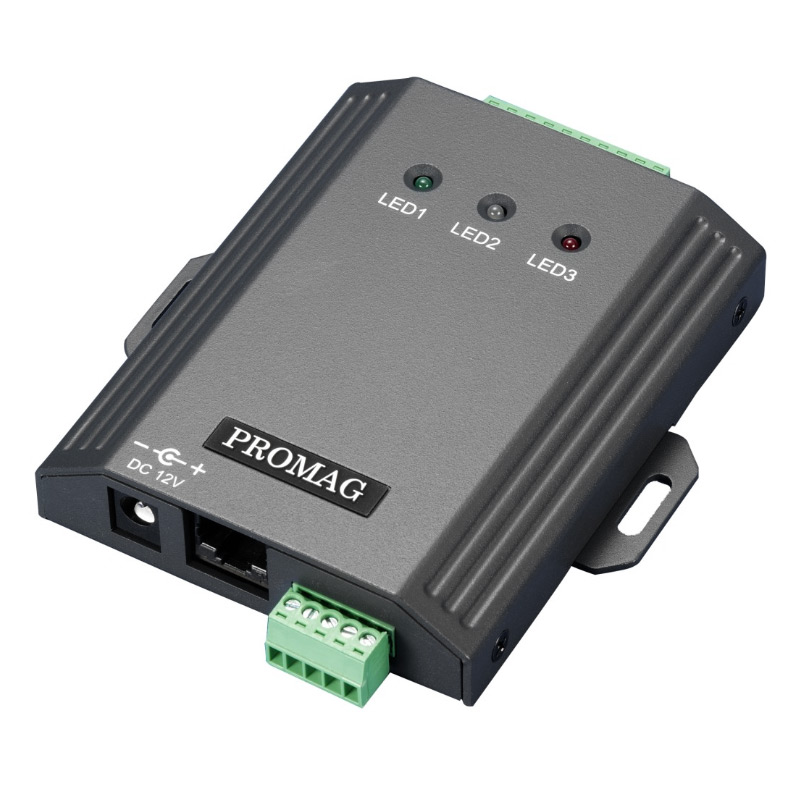

Promag WEC200 is a smart converter for converting from Wiegand to Ethernet data transmission, allowing you to network enable your wiegand devices / readers.
Ideal for integration of wiegand devices into network based access control systems for visitor management, access control or other applications.
Features
- Network enables any Wiegand interface device
- Communicates on the network using TCP or UDP protocols
- Supports over-the-network configuration of IP address
- Unique service code inside the hardware
- Available with user defined machine ID and name
- All settings can be configured over the via network
- 3-LED design for signal feedback
- Heavy-duty metal housing
Specification
Communication: One Wiegand port, One 10/100 BaseT Ethernet Port
Available Wiegand format: 26, 30, 34, 35, 37, 38, 42 bits
Power consumption: 140mA 12VDC
Protocols: Communicates with server on the networking using TCP or UDP protocols
Indication type: Three LEDs display status information
Dimension: 100 x 96.8 x 24.35 mm
Environment: Operating Temp: 0-55 Deg.C
Storage Temp: -10 - 55 Deg C
Humidity: 10-90% relative
Note: The Specification is subject to change without notice.
