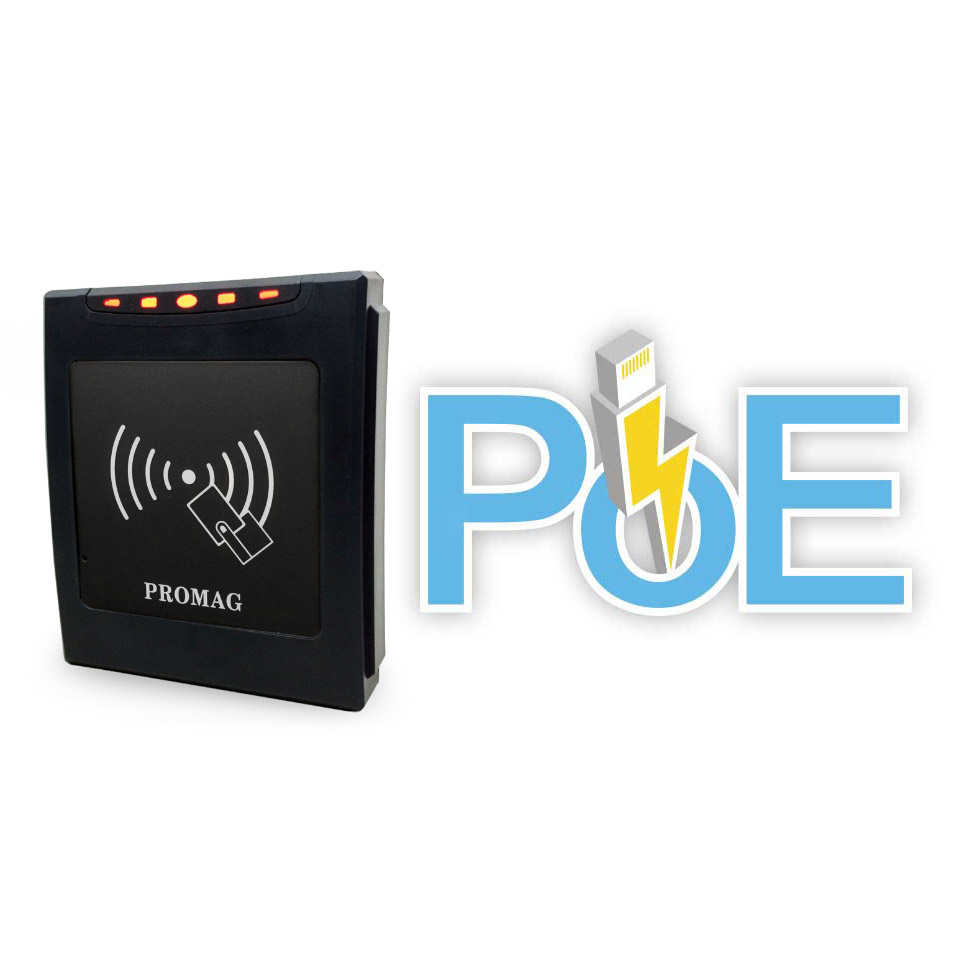

Promag ER750 / ER755 - Ethernet PoE MIFARE® Readers

13.56Mhz PoE Ethernet MIFARE Readers

Promag ER750 and ER755 are weather resistant ethernet MIFARE readers with 7cm read range and built-in relay control.

Each reader can be assigned a reader ID number for multiple unit communication.

Relay time, internal LED and buzzer are also configurable.

ER750ER755
Applications:MIFARE UID OnlyMIFARE Sector Data or MAD
Interface:Ethernet and PoE (CAT5 / CAT6)
Card Type:MIFARE Classic (1K/4K/8K)
Frequency:13.56Mhz
Interface:Ethernet with POE option
Audio / Visual indication:Internal LED and Buzzer
Relay:Built in relay
( 5A 120VAC or 5A 24VDC
Dimensions:112.3mm L x 96mm W x 22mm D
Housing:ABS housing

Features

  • Ethernet with POE option
  • Built-in Relay Control
  • Configurable LED and Buzzer
  • Weather Resistant indoor/outdoor design
  • Reader ID for multi unit communication

Applications

  • Access Control / Security
  • Time & Attendance
  • Identity Authentication
  • Student Retention

Available Versions

ER750-00 - Ethernet MIFARE UID Only (13.56MHz)
ER750-10 - PoE Ethernet MIFARE UID Only (13.56MHz)
ER755-00 - Ethernet MIFARE Sector Data or MAD (13.56MHz)
ER755-10 - PoE Ethernet MIFARE Sector Data or MAD (13.56MHz)

MIFARE is a registered Trademark of NXP B.V.
